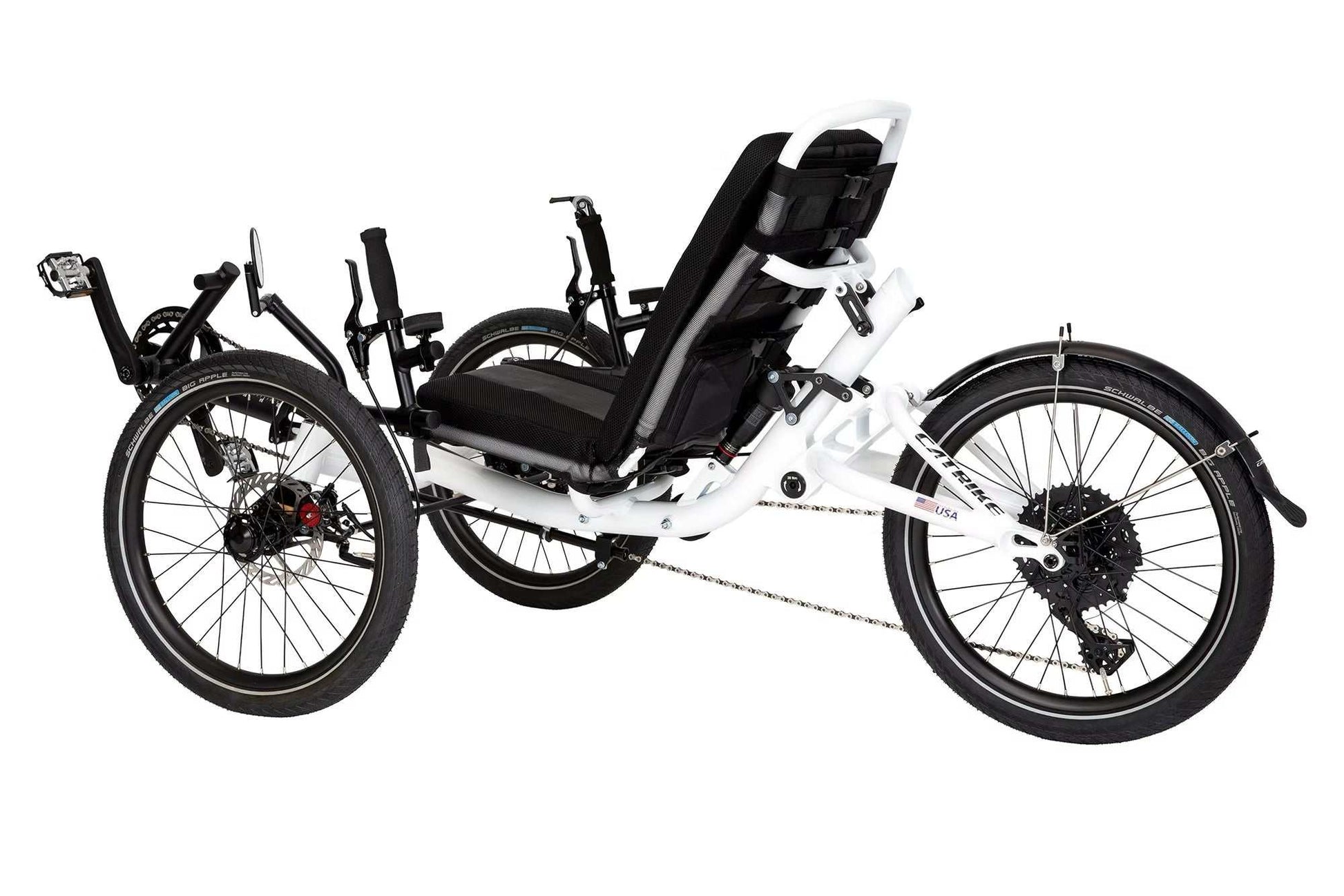

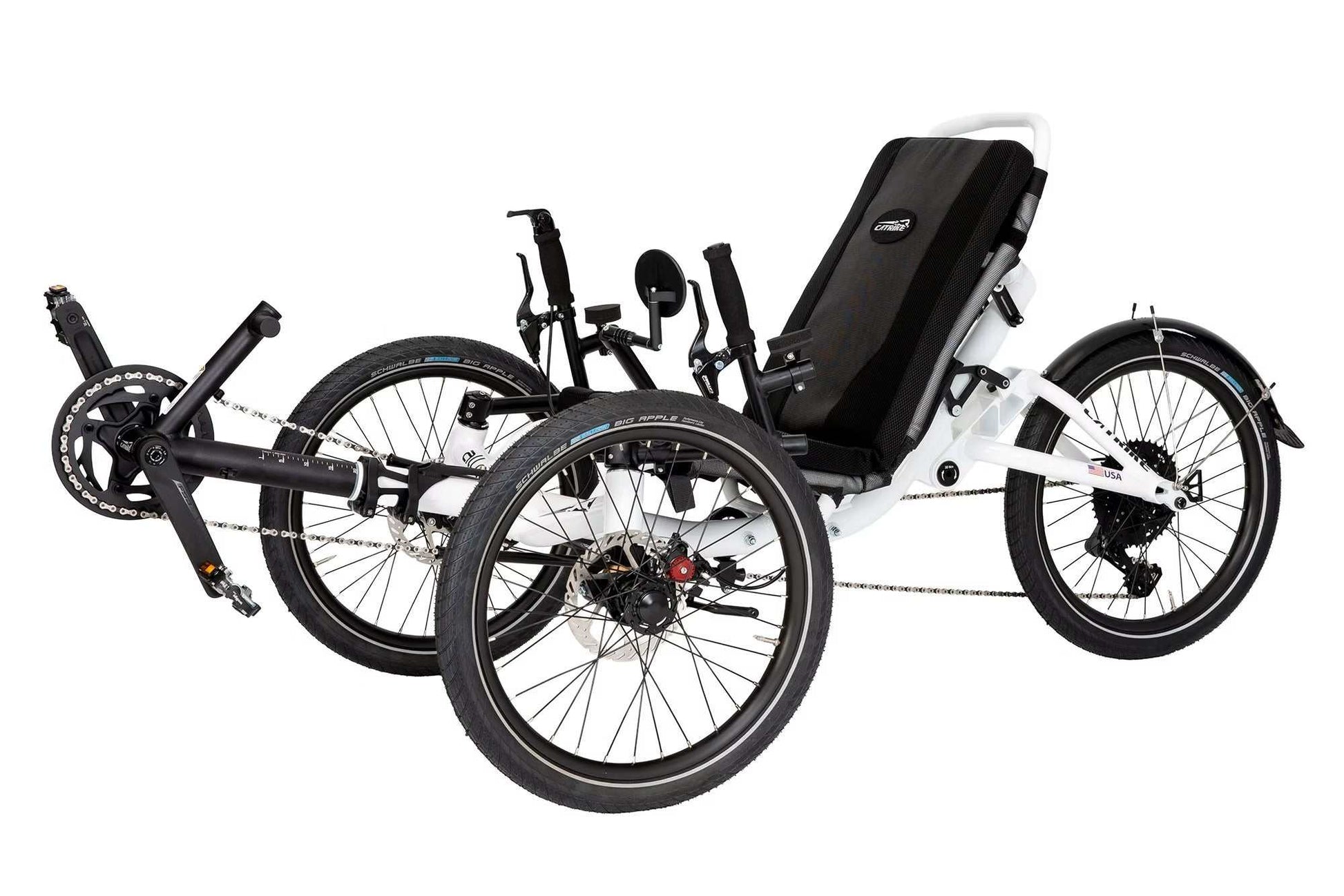

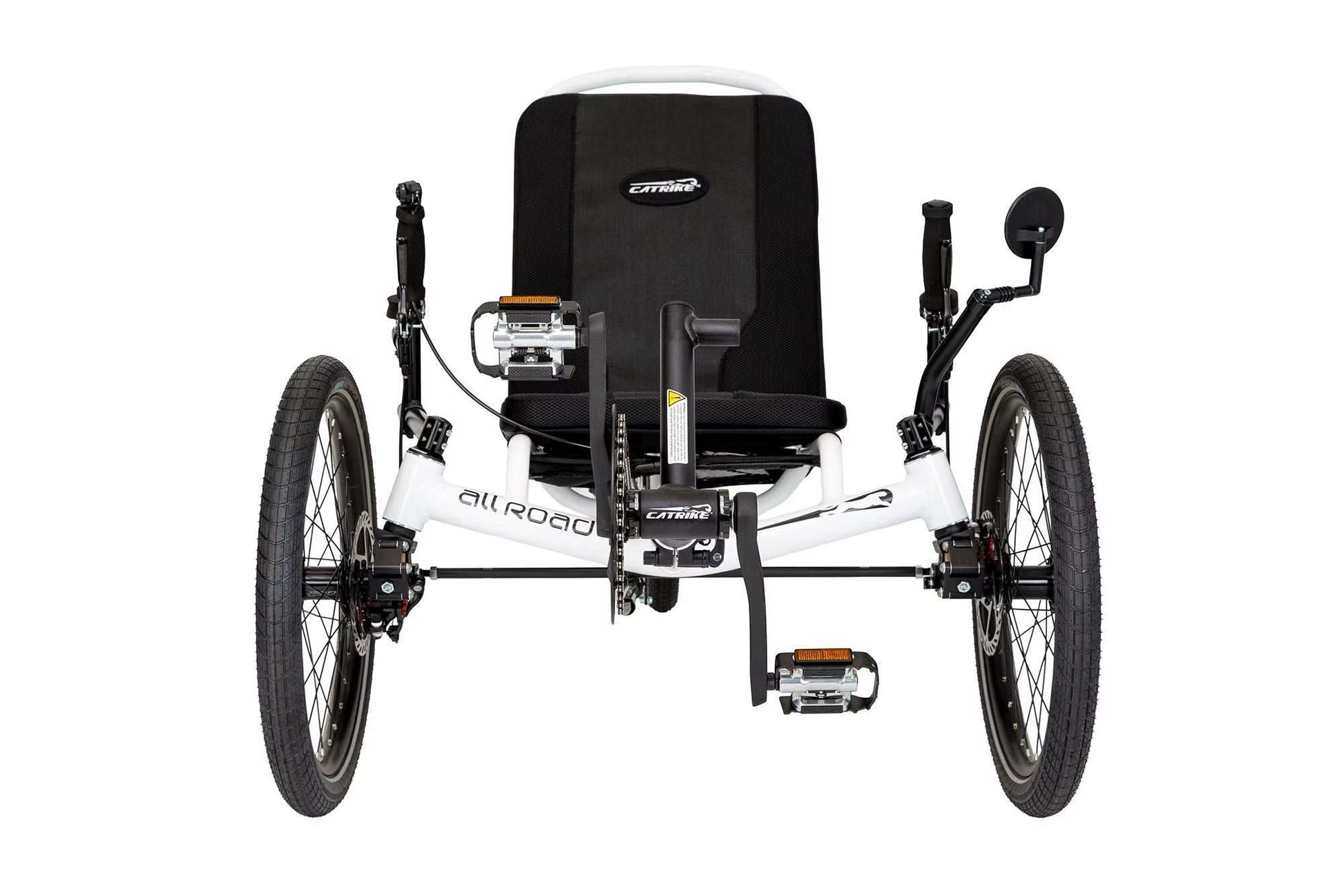

Catrike All Road
Catrike All Road
Couldn't load pickup availability
Share

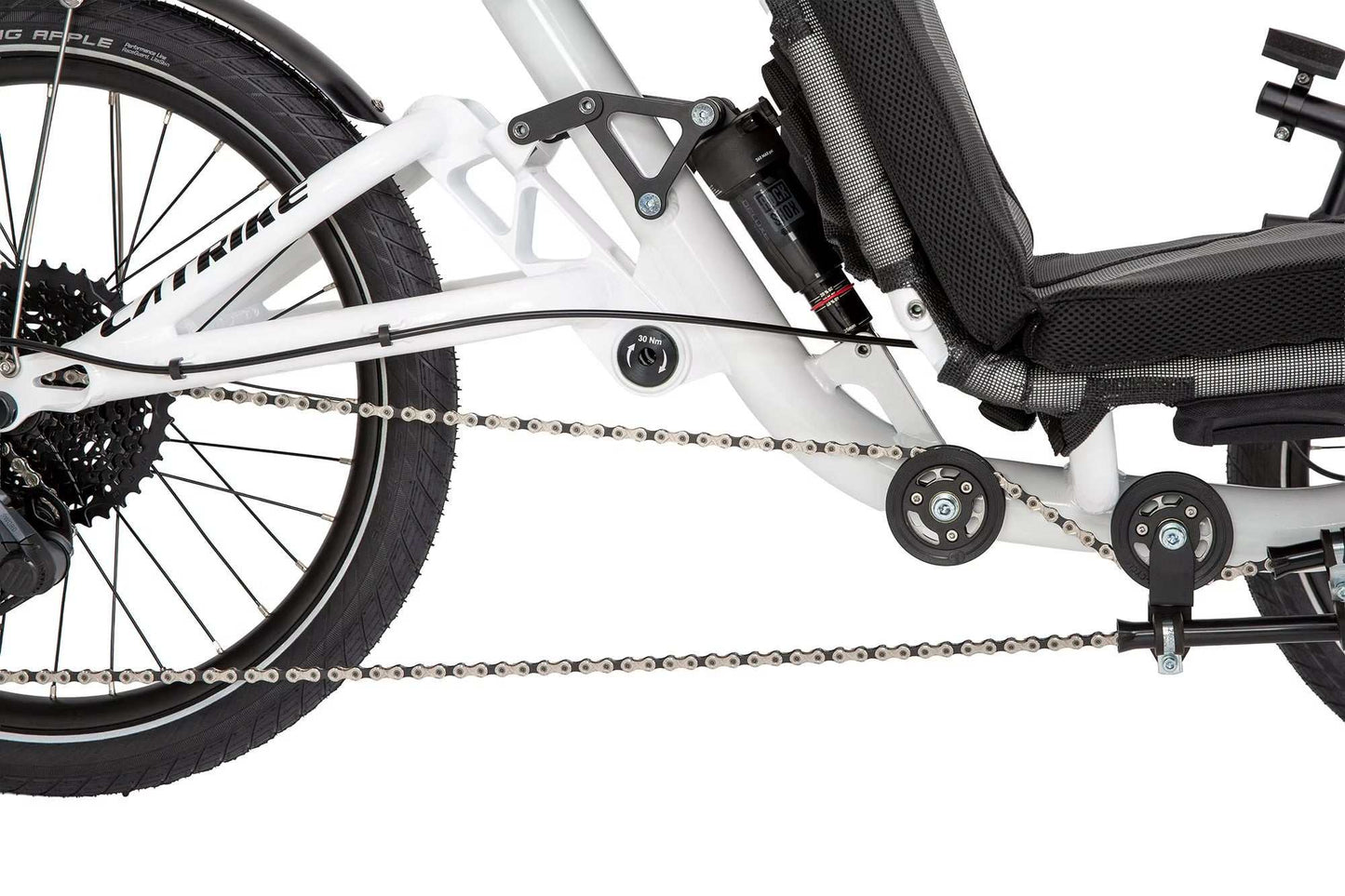

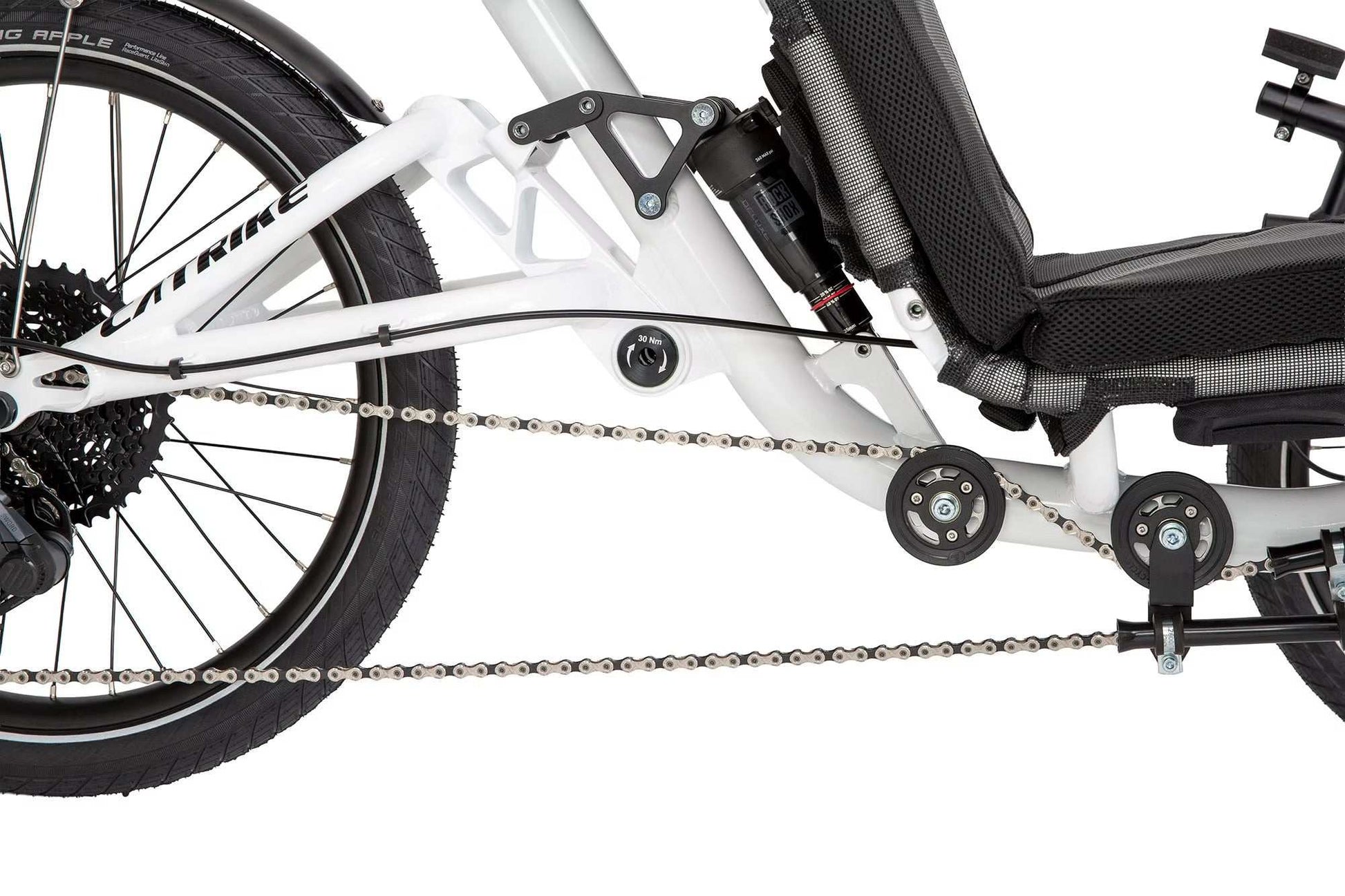

The new Catrike All Road utilizes the legendary full-suspension system pioneered on the Dumont. The All Road's rear suspension features a progressive travel path and a custom spring rate with sophisticated damping. The CNC-machined swingarm pivots on precision cartridge bearings for durability and smooth articulation. Up front, the All Road employs our patented anti-dive front suspension axles, allowing independent movement of all three wheels. The All Road comes outfitted with three, 20-inch wheels wrapped in Schwalbe 2.0 Big Apple tires, a high and wide adjustable seat and a 1x10 MicroShift drivetrain for unmatched comfort and performance.
The Catrike All Road ships in 2-3 weeks after ordering.
We charge a flat rate of $369 for shipping via freight in most of the Continental US. We do not ship Catrikes outside of the US. There are few zip codes in the US that are more expensive - we will reach out to discuss if this is an issue. It’s usually the very rural locations.
The bike comes 100% fully assembled. We require that all shipped Catrikes are ordered with a boom adjust kit so you just adjust the boom to the proper length, adjust the seat and handlebars to your liking and go for a ride! If you order additional parts with the bike, our website may charge you additional shipping. When we receive the order, we will refund that amount.
A final note about ordering bikes on our website: We will always call you after you place your order to discuss your build, make sure all of the options are correct and ensure that it is the right bike for you. If we need to make changes, additions or cancellations, we will happily do that - we want to make sure you are happy with your new bike. We will NEVER just ship out a bike without a conversation.
Frame and Geometry
| Wheel Base | 40 in | |
| Wheel Track | 31 in | |
| Total Width | 34.5 in | |
| Total Length** | 73 in | |
| Seat Angle | 51-58 deg | |
| Weight | 43 lb | |
| Seat Height | 13 in | |
| Seat Width | 14 in | |
| BB Height** | 17 in | |
| Ground Clearance | 6.5 in | |
| Total Height | 33 in | |
| Height w/ Seat Folded | 29 in | |
| Turning Circle | 16 ft | |
| Turning Radius | 8 ft | |
| Rider Weight Limit | 275 lb | |
| Rider X-Seam Range | 39/46 in | |
| Front Suspension Travel | 0.5 in | |
| Rear Suspension Travel | 2 in |
Components
| Brakes | Avid BB7 Disc Brakes |
| Brake Levers | Catrike Locking Brake Levers |
| Front Derailleur | N/A |
| Rear Derailleur | MicroShift Sword 10 speed |
| Shifters | MicroShift Bar End Shifter |

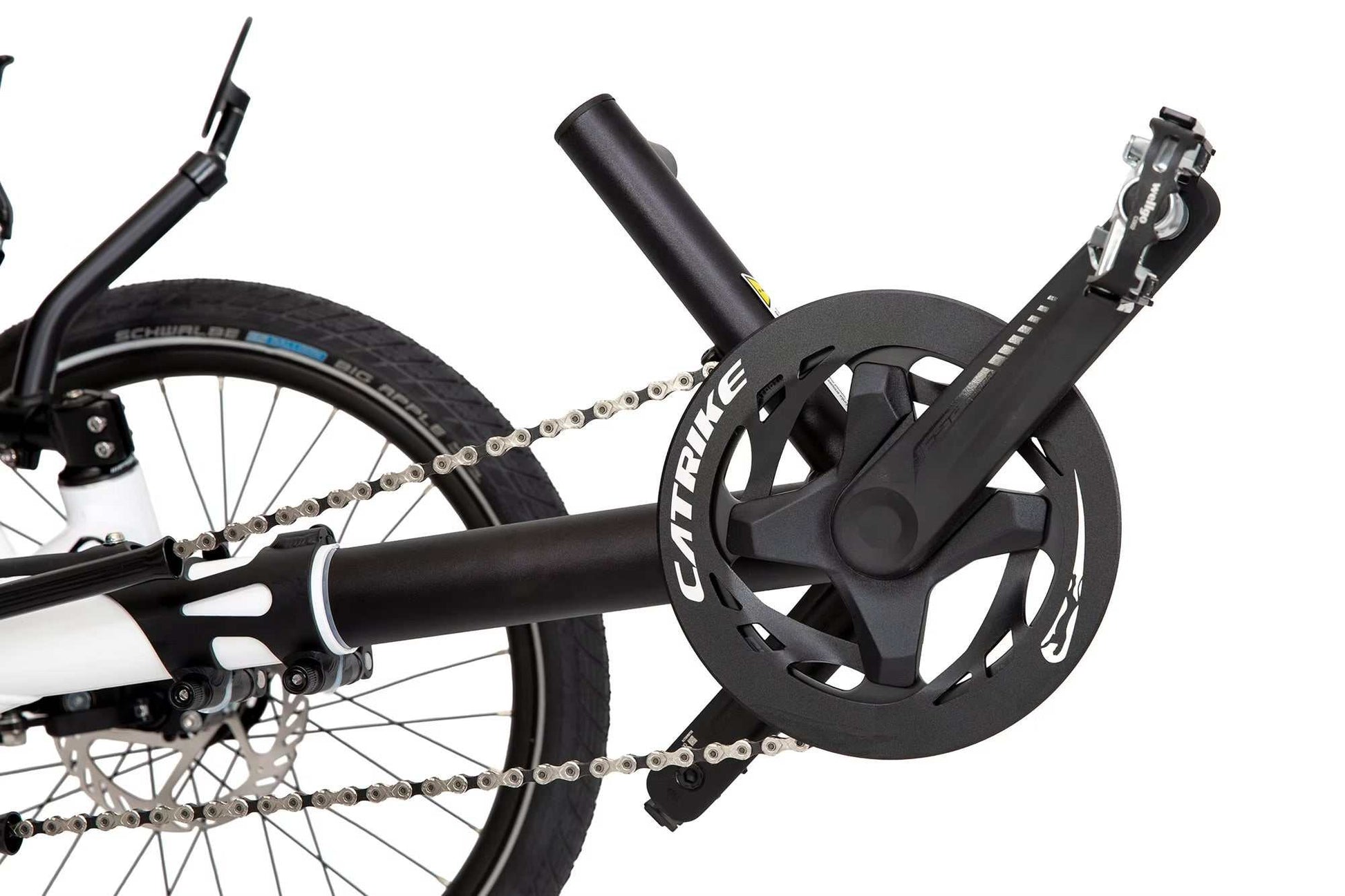

| Crankset | FSA Omega Abs 165mm |
| Bottom Bracket | FSA Road MegaExo |
| Chainring | FSA 42T |
| Chain Guard | N/A |
| Cassette | MicroShift 11-42 |
| Chain | KMC |
| Idler | 2 X TerraCycle Sport Power Idler 15T |
| Headsets | FSA Zero Stack |
| Front Tires | 406 Schwalbe Big Apple Performance 2.0 |
| Rear Tire | 406 Schwalbe Big Apple Performance 2.0 |
Standard Features
| Rear Fender |
| Flag Mount & Flag |
| Mirrycle Rear View Mirror |
| Multi Purpose Clipless Pedals |
| Computer Sensor Mount |
| No Brake Steer |
| Self Centering |
| Ackermann Steering Compensation |
| Structural Front Boom |
| Quick-Release Indexing Boom Clamp |
| Aluminum Rod Ends |
| Low Friction PTFE Flared Chain Tube |
| 12x142 Rear Thru Axle |
